Introducción

Se require modificar un pacman que esta funcionando pero presenta la problemática que no come las cerezas este sería el primer alcance proyecto porque fue tomado de un video y una página donde fue compartido.

Código

Cremos un proyecto java y lo nombramos Pacman.Posteriormente en src creamos un paquete llamado com.tutosoftware.pacman En este paquete creamos la clase Tablero



     package com.tutosoftware.pacman;

import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Event;
import java.awt.Font;
import java.awt.FontMetrics;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.Image;
import java.awt.Toolkit;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyAdapter;
import java.awt.event.KeyEvent;

import javax.swing.ImageIcon;
import javax.swing.JPanel;
import javax.swing.Timer;


public class Tablero extends JPanel implements ActionListener{

	/**
	 *
	 */
	private static final long serialVersionUID = 1L;
	private Dimension d;
    private final Font smallfont = new Font("Helvetica", Font.BOLD, 14);

    private Image ii;
    private final Color dotcolor = new Color(192, 192, 0);
    private Color mazecolor;

    private boolean ingame = false;
    private boolean dying = false;

    private final int blocksize = 24;
    private final int nrofblocks = 15;
    private final int scrsize = nrofblocks * blocksize;
    private final int pacanimdelay = 2;
    private final int pacmananimcount = 4;
    private final int maxghosts = 12;
    private final int pacmanspeed = 6;

    private int pacanimcount = pacanimdelay;
    private int pacanimdir = 1;
    private int pacmananimpos = 0;
    private int nrofghosts = 6;
    private int pacsleft, score;
    private int[] dx, dy;
    private int[] ghostx, ghosty, ghostdx, ghostdy, ghostspeed;

    private Image cerezas;
    private Image ghost;
    private Image pacman1, pacman2up, pacman2left, pacman2right, pacman2down;
    private Image pacman3up, pacman3down, pacman3left, pacman3right;
    private Image pacman4up, pacman4down, pacman4left, pacman4right;

    private int pacmanx, pacmany, pacmandx, pacmandy;
    private int reqdx, reqdy, viewdx, viewdy;

    private final short leveldata[] = {
        19, 26, 26, 26, 18, 18, 18, 18, 18, 18, 18, 18, 18, 18, 22,
        21, 0, 0, 0, 17, 16, 16, 16, 16, 16, 16, 16, 16, 16, 20,
        21, 0, 0, 0, 17, 16, 16, 16, 16, 16, 16, 16, 16, 16, 20,
        21, 0, 0, 0, 17, 16, 16, 24, 16, 16, 16, 16, 16, 16, 20,
        17, 18, 18, 18, 16, 16, 20, 0, 17, 16, 16, 16, 16, 16, 20,
        17, 16, 16, 16, 16, 16, 20, 0, 17, 16, 16, 16, 16, 24, 20,
        25, 16, 16, 16, 24, 24, 28, 0, 25, 24, 24, 16, 20, 0, 21,
        1, 17, 16, 20, 0, 0, 0, 0, 0, 0, 0, 17, 20, 0, 21,
        1, 17, 16, 16, 18, 18, 22, 0, 19, 18, 18, 16, 20, 0, 21,
        1, 17, 16, 24, 16, 16, 20, 0, 17, 16, 16, 16, 20, 0, 21,
        1, 17, 16, 1, 17, 16, 20, 0, 17, 16, 16, 16, 20, 0, 21,
        1, 17, 16, 1, 17, 16, 16, 18, 16, 16, 16, 16, 20, 0, 21,
        1, 17, 16, 18, 16, 16, 16, 16, 16, 16, 16, 16, 20, 0, 21,
        1, 25, 24, 24, 24, 24, 24, 24, 24, 24, 16, 16, 16, 18, 20,
        9, 8, 8, 8, 8, 8, 8, 8, 8, 8, 25, 24, 24, 24, 28
    };

    private final int validspeeds[] = {1, 2, 3, 4, 6, 8};
    private final int maxspeed = 6;

    private int currentspeed = 3;
    private short[] screendata;
    private Timer timer;

    public Tablero() {

        loadImages();
        initVariables();

        addKeyListener(new TAdapter());

        setFocusable(true);

        setBackground(Color.BLACK);
        setDoubleBuffered(true);
    }

    private void initVariables() {

        screendata = new short[nrofblocks * nrofblocks];
        mazecolor = new Color(5, 100, 5);
        d = new Dimension(400, 400);
        ghostx = new int[maxghosts];
        ghostdx = new int[maxghosts];
        ghosty = new int[maxghosts];
        ghostdy = new int[maxghosts];
        ghostspeed = new int[maxghosts];
        dx = new int[4];
        dy = new int[4];

        timer = new Timer(40, this);
        timer.start();
    }

    @Override
    public void addNotify() {
        super.addNotify();

        initGame();
    }

    private void doAnim() {

        pacanimcount--;

        if (pacanimcount <= 0) {
            pacanimcount = pacanimdelay;
            pacmananimpos = pacmananimpos + pacanimdir;

            if (pacmananimpos == (pacmananimcount - 1) || pacmananimpos == 0) {
                pacanimdir = -pacanimdir;
            }
        }
    }

    private void playGame(Graphics2D g2d) {

        if (dying) {

            death();

        } else {

            movePacman();
            drawPacman(g2d);
            moveGhosts(g2d);
            checkMaze();
        }
    }

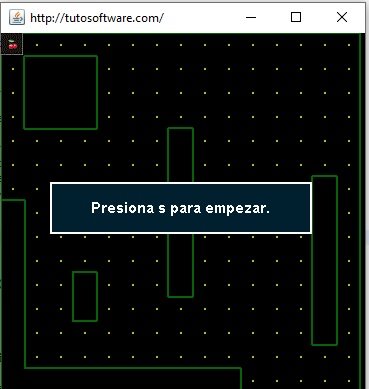

    private void showIntroScreen(Graphics2D g2d) {

        g2d.setColor(new Color(0, 32, 48));
        g2d.fillRect(50, scrsize / 2 - 30, scrsize - 100, 50);
        g2d.setColor(Color.white);
        g2d.drawRect(50, scrsize / 2 - 30, scrsize - 100, 50);

        String s = "Presiona s para empezar.";
        Font small = new Font("Helvetica", Font.BOLD, 15);
        FontMetrics metr = this.getFontMetrics(small);

        g2d.setColor(Color.white);
        g2d.setFont(small);
        g2d.drawString(s, (scrsize - metr.stringWidth(s)) / 2, scrsize / 2);
    }

    private void drawScore(Graphics2D g) {

        int i;
        String s;

        g.setFont(smallfont);
        g.setColor(new Color(96, 128, 255));
        s = "Score: " + score;
        g.drawString(s, scrsize / 2 + 96, scrsize + 16);

        for (i = 0; i < pacsleft; i++) {
            g.drawImage(pacman3left, i * 28 + 8, scrsize + 1, this);
        }
    }

    private void checkMaze() {

        short i = 0;
        boolean finished = true;

        while (i < nrofblocks * nrofblocks && finished) {

            if ((screendata[i] & 48) != 0) {
                finished = false;
            }

            i++;
        }

        if (finished) {

            score += 50;

            if (nrofghosts < maxghosts) {
                nrofghosts++;
            }

            if (currentspeed < maxspeed) {
                currentspeed++;
            }

            initLevel();
        }
    }

    private void death() {//murio

        pacsleft--;

        if (pacsleft == 0) {
            ingame = false;
        }

        continueLevel();
    }

    private void moveGhosts(Graphics2D g2d) {//mover fantasmas

        short i;
        int pos;
        int count;

        for (i = 0; i < nrofghosts; i++) {
            if (ghostx[i] % blocksize == 0 && ghosty[i] % blocksize == 0) {
                pos = ghostx[i] / blocksize + nrofblocks * (int) (ghosty[i] / blocksize);

                count = 0;

                if ((screendata[pos] & 1) == 0 && ghostdx[i] != 1) {
                    dx[count] = -1;
                    dy[count] = 0;
                    count++;
                }

                if ((screendata[pos] & 2) == 0 && ghostdy[i] != 1) {
                    dx[count] = 0;
                    dy[count] = -1;
                    count++;
                }

                if ((screendata[pos] & 4) == 0 && ghostdx[i] != -1) {
                    dx[count] = 1;
                    dy[count] = 0;
                    count++;
                }

                if ((screendata[pos] & 8) == 0 && ghostdy[i] != -1) {
                    dx[count] = 0;
                    dy[count] = 1;
                    count++;
                }

                if (count == 0) {

                    if ((screendata[pos] & 15) == 15) {
                        ghostdx[i] = 0;
                        ghostdy[i] = 0;
                    } else {
                        ghostdx[i] = -ghostdx[i];
                        ghostdy[i] = -ghostdy[i];
                    }

                } else {

                    count = (int) (Math.random() * count);

                    if (count > 3) {
                        count = 3;
                    }

                    ghostdx[i] = dx[count];
                    ghostdy[i] = dy[count];
                }

            }

            ghostx[i] = ghostx[i] + (ghostdx[i] * ghostspeed[i]);
            ghosty[i] = ghosty[i] + (ghostdy[i] * ghostspeed[i]);
            drawGhost(g2d, ghostx[i] + 1, ghosty[i] + 1);

            if (pacmanx > (ghostx[i] - 12) && pacmanx < (ghostx[i] + 12)
                    && pacmany > (ghosty[i] - 12) && pacmany < (ghosty[i] + 12)
                    && ingame) {

                dying = true;
            }
        }
    }

    private void drawGhost(Graphics2D g2d, int x, int y) {

        g2d.drawImage(ghost, x, y, this);
    }

    private void movePacman() {

        int pos;
        short ch;

        if (reqdx == -pacmandx && reqdy == -pacmandy) {
            pacmandx = reqdx;
            pacmandy = reqdy;
            viewdx = pacmandx;
            viewdy = pacmandy;
        }

        if (pacmanx % blocksize == 0 && pacmany % blocksize == 0) {
            pos = pacmanx / blocksize + nrofblocks * (int) (pacmany / blocksize);
            ch = screendata[pos];

            if ((ch & 16) != 0 ) {
                screendata[pos] = (short) (ch & 15);
                score++;
            }






            if (reqdx != 0 || reqdy != 0) {
                if (!((reqdx == -1 && reqdy == 0 && (ch & 1) != 0)
                        || (reqdx == 1 && reqdy == 0 && (ch & 4) != 0)
                        || (reqdx == 0 && reqdy == -1 && (ch & 2) != 0)
                        || (reqdx == 0 && reqdy == 1 && (ch & 8) != 0))) {
                    pacmandx = reqdx;
                    pacmandy = reqdy;
                    viewdx = pacmandx;
                    viewdy = pacmandy;
                }
            }

            // Check for standstill
            if ((pacmandx == -1 && pacmandy == 0 && (ch & 1) != 0)
                    || (pacmandx == 1 && pacmandy == 0 && (ch & 4) != 0)
                    || (pacmandx == 0 && pacmandy == -1 && (ch & 2) != 0)
                    || (pacmandx == 0 && pacmandy == 1 && (ch & 8) != 0)) {
                pacmandx = 0;
                pacmandy = 0;
            }
        }
        pacmanx = pacmanx + pacmanspeed * pacmandx;
        pacmany = pacmany + pacmanspeed * pacmandy;
    }

    private void drawPacman(Graphics2D g2d) {

        if (viewdx == -1) {
            drawPacnanLeft(g2d);
        } else if (viewdx == 1) {
            drawPacmanRight(g2d);
        } else if (viewdy == -1) {
            drawPacmanUp(g2d);
        } else {
            drawPacmanDown(g2d);
        }
    }

    private void drawPacmanUp(Graphics2D g2d) {

        switch (pacmananimpos) {
            case 1:
                g2d.drawImage(pacman2up, pacmanx + 1, pacmany + 1, this);

                break;
            case 2:
                g2d.drawImage(pacman3up, pacmanx + 1, pacmany + 1, this);
                break;
            case 3:
                g2d.drawImage(pacman4up, pacmanx + 1, pacmany + 1, this);
                break;
            default:
                g2d.drawImage(pacman1, pacmanx + 1, pacmany + 1, this);
                break;
        }
    }

    private void drawPacmanDown(Graphics2D g2d) {

        switch (pacmananimpos) {
            case 1:
                g2d.drawImage(pacman2down, pacmanx + 1, pacmany + 1, this);
                break;
            case 2:
                g2d.drawImage(pacman3down, pacmanx + 1, pacmany + 1, this);
                break;
            case 3:
                g2d.drawImage(pacman4down, pacmanx + 1, pacmany + 1, this);
                break;
            default:
                g2d.drawImage(pacman1, pacmanx + 1, pacmany + 1, this);
                break;
        }
    }

    private void drawPacnanLeft(Graphics2D g2d) {

        switch (pacmananimpos) {
            case 1:
                g2d.drawImage(pacman2left, pacmanx + 1, pacmany + 1, this);
                break;
            case 2:
                g2d.drawImage(pacman3left, pacmanx + 1, pacmany + 1, this);
                break;
            case 3:
                g2d.drawImage(pacman4left, pacmanx + 1, pacmany + 1, this);
                break;
            default:
                g2d.drawImage(pacman1, pacmanx + 1, pacmany + 1, this);
                break;
        }
    }

    private void drawPacmanRight(Graphics2D g2d) {

        switch (pacmananimpos) {
            case 1:
                g2d.drawImage(pacman2right, pacmanx + 1, pacmany + 1, this);
                break;
            case 2:
                g2d.drawImage(pacman3right, pacmanx + 1, pacmany + 1, this);
                break;
            case 3:
                g2d.drawImage(pacman4right, pacmanx + 1, pacmany + 1, this);
                break;
            default:
                g2d.drawImage(pacman1, pacmanx + 1, pacmany + 1, this);
                break;
        }
    }

    private void drawMaze(Graphics2D g2d) {

        short i = 0;
        int x, y;

        for (y = 0; y < scrsize; y += blocksize) {
            for (x = 0; x < scrsize; x += blocksize) {

                g2d.setColor(mazecolor);
                g2d.setStroke(new BasicStroke(2));

                if ((screendata[i] & 1) != 0) {
                    g2d.drawLine(x, y, x, y + blocksize - 1);
                }

                if ((screendata[i] & 2) != 0) {
                    g2d.drawLine(x, y, x + blocksize - 1, y);
                }

                if ((screendata[i] & 4) != 0) {
                    g2d.drawLine(x + blocksize - 1, y, x + blocksize - 1,
                            y + blocksize - 1);
                }




                if ((screendata[i] & 8) != 0) {
                    g2d.drawLine(x, y + blocksize - 1, x + blocksize - 1,
                            y + blocksize - 1);
                }

                if ((screendata[i] & 16) != 0) {
                    g2d.setColor(dotcolor);
                    g2d.fillRect(x + 11, y + 11, 2, 2);
                }



                i++;
            }
        }

        if ((screendata[19] & 19) != 0) {
        	g2d.setColor(dotcolor);
        	 g2d.drawImage(cerezas,0,0 ,this);
        }






    }

    private void initGame() {

        pacsleft = 3;
        score = 0;
        initLevel();
        nrofghosts = 6;
        currentspeed = 3;
    }

    private void initLevel() {

        int i;
        for (i = 0; i < nrofblocks * nrofblocks; i++) {
            screendata[i] = leveldata[i];
        }

        continueLevel();
    }

    private void continueLevel() {

        short i;
        int dx = 1;
        int random;

        for (i = 0; i < nrofghosts; i++) {

            ghosty[i] = 4 * blocksize;
            ghostx[i] = 4 * blocksize;
            ghostdy[i] = 0;
            ghostdx[i] = dx;
            dx = -dx;
            random = (int) (Math.random() * (currentspeed + 1));

            if (random > currentspeed) {
                random = currentspeed;
            }

            ghostspeed[i] = validspeeds[random];
        }

        pacmanx = 7 * blocksize;
        pacmany = 11 * blocksize;
        pacmandx = 0;
        pacmandy = 0;
        reqdx = 0;
        reqdy = 0;
        viewdx = -1;
        viewdy = 0;
        dying = false;
    }

    private void loadImages() {

        cerezas = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/cerezas.gif")).getImage();
    	ghost = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/ghost.gif")).getImage();
        pacman1 = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/pacman.gif")).getImage();
        pacman2up = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/up1.gif")).getImage();
        pacman3up = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/up2.gif")).getImage();
        pacman4up = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/up3.gif")).getImage();
        pacman2down = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/down1.gif")).getImage();
        pacman3down = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/down2.gif")).getImage();
        pacman4down = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/down3.gif")).getImage();
        pacman2left = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/left1.gif")).getImage();
        pacman3left = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/left2.gif")).getImage();
        pacman4left = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/left3.gif")).getImage();
        pacman2right = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/right1.gif")).getImage();
        pacman3right = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/right2.gif")).getImage();
        pacman4right = new ImageIcon(getClass().getResource("/com/tutosoftware/pacman/images/right3.gif")).getImage();

    }

    @Override
    public void paintComponent(Graphics g) {
        super.paintComponent(g);

        doDrawing(g);
    }

    private void doDrawing(Graphics g) {

        Graphics2D g2d = (Graphics2D) g;

        g2d.setColor(Color.black);
        g2d.fillRect(0, 0, d.width, d.height);

        drawMaze(g2d);
        drawScore(g2d);
        doAnim();

        if (ingame) {
            playGame(g2d);
        } else {
            showIntroScreen(g2d);
        }

        g2d.drawImage(ii, 5, 5, this);
        Toolkit.getDefaultToolkit().sync();
        g2d.dispose();
    }

    class TAdapter extends KeyAdapter {

        @Override
        public void keyPressed(KeyEvent e) {

            int key = e.getKeyCode();

            if (ingame) {
                if (key == KeyEvent.VK_LEFT) {
                    reqdx = -1;
                    reqdy = 0;
                } else if (key == KeyEvent.VK_RIGHT) {
                    reqdx = 1;
                    reqdy = 0;
                } else if (key == KeyEvent.VK_UP) {
                    reqdx = 0;
                    reqdy = -1;
                } else if (key == KeyEvent.VK_DOWN) {
                    reqdx = 0;
                    reqdy = 1;
                } else if (key == KeyEvent.VK_ESCAPE && timer.isRunning()) {
                    ingame = false;
                } else if (key == KeyEvent.VK_PAUSE) {
                    if (timer.isRunning()) {
                        timer.stop();
                    } else {
                        timer.start();
                    }
                }
            } else {
                if (key == 's' || key == 'S') {
                    ingame = true;
                    initGame();
                }
            }
        }

        @Override
        public void keyReleased(KeyEvent e) {

            int key = e.getKeyCode();

            if (key == Event.LEFT || key == Event.RIGHT
                    || key == Event.UP || key == Event.DOWN) {
                reqdx = 0;
                reqdy = 0;
            }
        }
    }








	@Override
	public void actionPerformed(ActionEvent arg0) {
		// TODO Auto-generated method stub

		repaint();

	}

}






Ahora creamos un paquete llamado com.tutosoftware.pacman.images en este paquete vamos meter la imagenes del laberinto.
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
pacman
En el paquete com.tutosoftware.pacman creamos la clase Pacman



    package com.tutosoftware.pacman;

import java.awt.EventQueue;

import javax.swing.JFrame;




public class Pacman extends JFrame{

	/**
	 *
	 */
	private static final long serialVersionUID = 1L;

	public static void main(String[] args) {
		// TODO Auto-generated method stub

		EventQueue.invokeLater(new Runnable() {

            @Override
            public void run() {
                Pacman ex = new Pacman();
                ex.setVisible(true);
            }
        });

	}

	public Pacman() {

        initUI();
    }

	private void initUI() {

        add(new Tablero());
        setTitle("http://tutosoftware.com/");
        setDefaultCloseOperation(EXIT_ON_CLOSE);
        setSize(380, 420);
        setLocationRelativeTo(null);
        setVisible(true);
}

}







Corremos el ejemplo
pacman

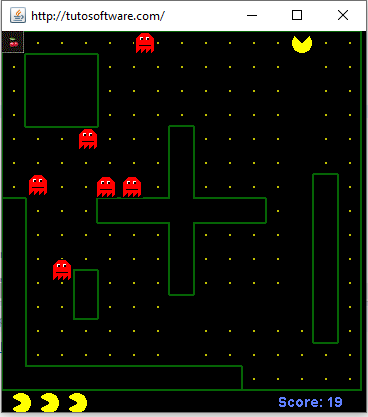

Presionamos s
pacman
Funciona y le falta para ser un pacman completo yo hice la modifcación de una pared y agrege la cereza pero el problema inmediato a resolver es que el pacman se coma la cereza, la desaparezca y en el score aumente 5 puntos en breve si logro modificarlo subo el cambio o si alguien de ustedes que este viendo el tutorial y logra modificarlo favor de mandar un correo a kapo1978@hotmail.com y quiere compartir su código favor de noticarnos para publicarlo.En particular yo me dedico a la informatica empresarial pero siempre me quedo el gusanito de querer programar video juegos.Buenos nos vemos y esperemos lograr hacerle alguna modificación al ejemplo saludos cordiales.
