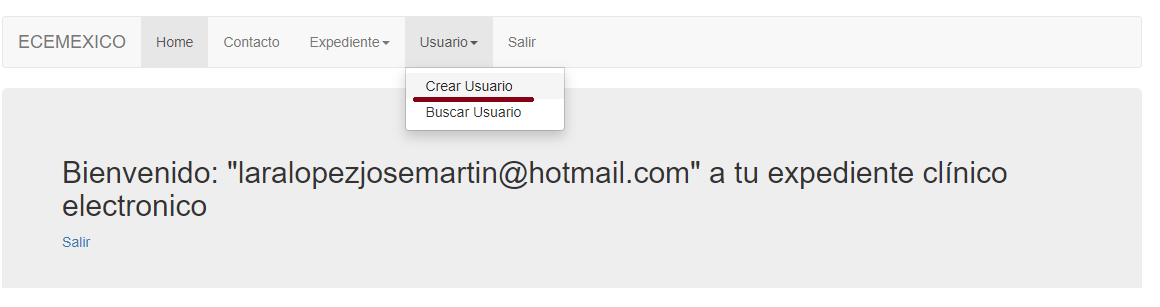

Crear Usuario
Esta pantalla u opción es solo para usuarios que tengan el rol de ADMIN los USER no pueden utilizar esta opción el primer jsp que vamos a realizar es agregarUsuario.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
pageEncoding="ISO-8859-1"%>
<%@ page isELIgnored="false" %>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>AgregarPaciente</title>
<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css">
<link href="css/navbar.css" rel="stylesheet"></link>
<link rel="stylesheet" type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/font-awesome/4.2.0/css/font-awesome.css" />
<link href="css/app.css" rel="stylesheet"></link>
<style>
.errorblock {
color: #000;
background-color: #ffEEEE;
border: 3px solid #ff0000;
padding: 8px;
margin: 16px;
}
</style>
</head>
<body>
<div class="container">
<h1>Crear Usuario</h1>
<!-- Static navbar -->
<!-- Static navbar -->
<nav class="navbar navbar-default">
<div class="container-fluid">
<div class="navbar-header">
<button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar" aria-expanded="false" aria-controls="navbar">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="#">ECEMEXICO</a>
</div>
<div id="navbar" class="navbar-collapse collapse">
<ul class="nav navbar-nav">
<li class="active"><a href="menu">Home</a></li>
<li><a href="#">Contacto</a></li>
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true" aria-expanded="false">Expediente<span class="caret"></span></a>
<ul class="dropdown-menu">
<li><a href="registrarPaciente">Crear expediente</a></li>
<li><a href="buscarExpediente">Buscar Expediente</a></li>
<li><a href="#"></a></li>
<li role="separator" class="divider"></li>
<li class="dropdown-header">Especialidades</li>
<li><a href="#"></a></li>
<li><a href="#"></a></li>
</ul>
</li>
<li><a href="<c:url value="/logout" />">Salir</a></li>
</ul>
</div><!--/.nav-collapse -->
</div><!--/.container-fluid -->
</nav>

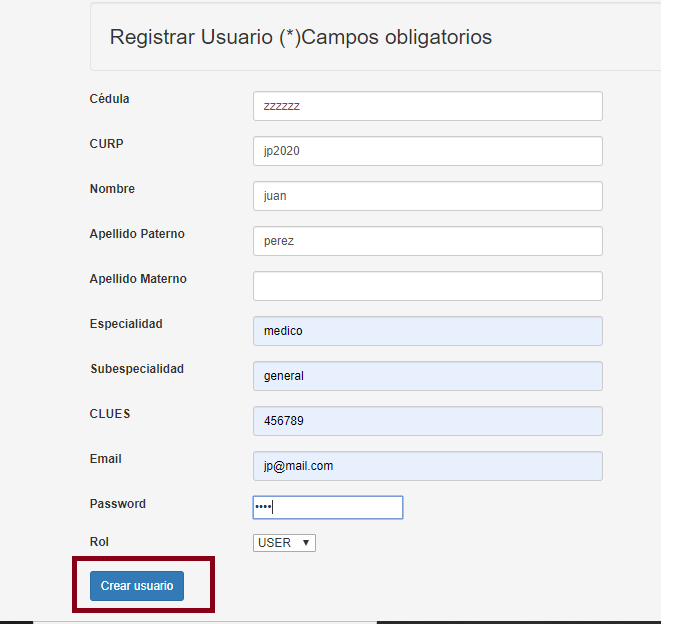

<div class="well lead">Registrar Usuario (*)Campos obligatorios</div>
<form:form method="POST" modelAttribute="usuario" class="form-horizontal" action="guardarUsuario">
<form:errors path = "*" cssClass = "errorblock" element = "div" />
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="cedula">Cédula</label>
<div class="col-md-7">
<form:input type="text" path="cedula" id="cedula" class="form-control input-sm"/>
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="curp">CURP</label>
<div class="col-md-7">
<form:input type="text" path="curp" id="curp" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="nombre">Nombre</label>
<div class="col-md-7">
<form:input type="text" path="nombre" id="nombre" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="apellidoPaterno">Apellido Paterno</label>
<div class="col-md-7">
<form:input type="text" path="apellidoPaterno" id="apellidoPaterno" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="apellidoMaterno">Apellido Materno</label>
<div class="col-md-7">
<form:input type="text" path="apellidoMaterno" id="apellidoMaterno" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="especialidad">Especialidad</label>
<div class="col-md-7">
<form:input type="text" path="especialidad" id="especialidad" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="subEspecialidad">Subespecialidad</label>
<div class="col-md-7">
<form:input type="text" path="subEspecialidad" id="subEspecialidad
" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="clues">CLUES</label>
<div class="col-md-7">
<form:input type="text" path="clues" id="clues"
class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="email">Email</label>
<div class="col-md-7">
<form:input type="text" path="email" id="email"
class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="password">Password</label>
<div class="col-md-7">
<form:password path="password"/>
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="rol">Rol</label>
<div class="col-md-7">
<form:select path="rol"
data-toggle="tooltip" data-placement="right" title="Seleccione tipo del rol">
<form:option value="USER"></form:option>
<form:option value="ADMIN"></form:option>
</form:select>
</div>
</div>
</div>
<div class="row">
<div class="col-md-7">
<div> <input type="submit" value="Crear usuario" class="btn btn-primary btn-sm"/>
</div>
</div>
</div>
</form:form>
</div>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.4/jquery.min.js"></script>
<script>window.jQuery || document.write('<script src="js/jquery.min.js"><\/script>')</script>
<script src="js/bootstrap.min.js"></script>
<!-- IE10 viewport hack for Surface/desktop Windows 8 bug -->
<script src="js/ie10-viewport-bug-workaround.js"></script>
<script type="text/javascript">
$(function () {
$('[data-toggle="tooltip"]').tooltip()
})
</script>
</body>
</html>

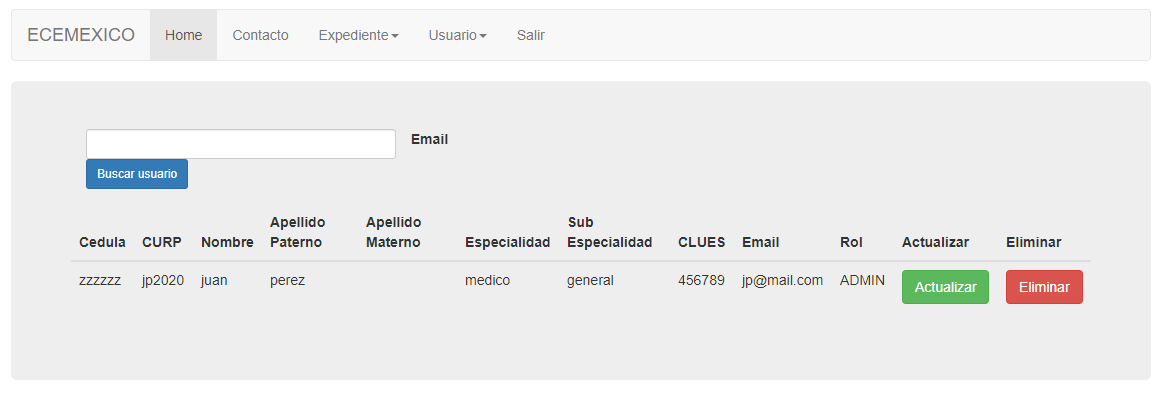

Si la inserción es exitosa creamos la vista verUsuarios.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
pageEncoding="ISO-8859-1"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>ECEMEXICO</title>
<link href="css/bootstrap.css" rel="stylesheet"></link>
<link href="css/navbar.css" rel="stylesheet"></link>
<link rel="stylesheet" type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/font-awesome/4.2.0/css/font-awesome.css" />
</head>
<body>
<div class="container">
<!-- Static navbar -->
<nav class="navbar navbar-default">
<div class="container-fluid">
<div class="navbar-header">
<button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar" aria-expanded="false" aria-controls="navbar">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="#">ECEMEXICO</a>
</div>
<div id="navbar" class="navbar-collapse collapse">
<ul class="nav navbar-nav">
<li class="active"><a href="menu">Home</a></li>
<li><a href="#">Contacto</a></li>
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true" aria-expanded="false">Expediente<span class="caret"></span></a>
<ul class="dropdown-menu">
<li><a href="registrarPaciente">Crear expediente</a></li>
<li><a href="buscarExpediente">Buscar Expediente</a></li>
<li><a href="#"></a></li>
<li role="separator" class="divider"></li>
<li class="dropdown-header">Especialidades</li>
<li><a href="#"></a></li>
<li><a href="#"></a></li>
</ul>
</li>
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true" aria-expanded="false">Usuario<span class="caret"></span></a>
<ul class="dropdown-menu">
<li><a href="registrarUsuarioForm">Crear Usuario</a></li>
<li><a href="buscarUsuarioForm">Buscar Usuario</a></li>
</ul>
</li>
<li><a href="<c:url value="/logout" />">Salir</a></li>
</ul>
</div><!--/.nav-collapse -->
</div><!--/.container-fluid -->
</nav>
<!-- Main component for a primary marketing message or call to action -->
<div class="jumbotron">
<form action="buscarUsuario" >
<div class="row">
<div class="form-group col-md-7">
<label for="email">Email</label>
<div class="col-md-7">
<input type='text' name='email' id='email' class="form-control input-sm" required />
<button class="btn btn-primary btn-sm" type="submit" name="action">Buscar usuario</button>
</div>
</div>
</div>
</form>
<table class="table">
<thead class="thead-dark">
<tr>
<th scope="col">Cedula</th>
<th scope="col">CURP</th>
<th scope="col">Nombre</th>
<th scope="col">Apellido Paterno</th>
<th scope="col">Apellido Materno</th>
<th scope="col">Especialidad</th>
<th scope="col">Sub Especialidad</th>
<th scope="col">CLUES</th>
<th scope="col">Email</th>
<th scope="col">Rol</th>
<th scope="col">Actualizar</th>
<th scope="col">Eliminar</th>
</tr>
</thead>
<tbody>
<tr>
<td>${usuario.cedula}</td>
<td>${usuario.curp}</td>
<td>${usuario.nombre}</td>
<td>${usuario.apellidoPaterno}</td>
<td>${usuario.apellidoMaterno}</td>
<td>${usuario.especialidad}</td>
<td>${usuario.subEspecialidad}</td>
<td>${usuario.clues}</td>
<td>${usuario.email}</td>
<td>${usuario.rol}</td>
<td><a href="actualizarUsuarioForm?email=<c:out value='${usuario.email}'/>" class="btn btn-success custom-width" >Actualizar</a></td>
<td><a href="eliminarUsuario?email=<c:out value='${usuario.email}'/>" class="btn btn-danger custom-width" >Eliminar</a></td>
</tr>
</tbody>
</table>
</div> <!-- /container -->
<script src="//ajax.googleapis.com/ajax/libs/jquery/1.9.1/jquery.min.js"></script>
<script>window.jQuery || document.write('<script src="js/jquery.min.js"><\/script>')</script>
<script src="js/bootstrap.min.js"></script>
<!-- IE10 viewport hack for Surface/desktop Windows 8 bug -->
<script src="js/ie10-viewport-bug-workaround.js"></script>
</body>
</html>
Si queremos modidifcar los datos modificarUsuario.jsp
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
pageEncoding="ISO-8859-1"%>
<%@ page isELIgnored="false" %>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Actualizar Usuario</title>
<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css">
<link href="css/navbar.css" rel="stylesheet"></link>
<link rel="stylesheet" type="text/css" href="//cdnjs.cloudflare.com/ajax/libs/font-awesome/4.2.0/css/font-awesome.css" />
<link href="css/app.css" rel="stylesheet"></link>
<style>
.errorblock {
color: #000;
background-color: #ffEEEE;
border: 3px solid #ff0000;
padding: 8px;
margin: 16px;
}
</style>
</head>
<body>
<div class="container">
<h1>Actualizar Usuario</h1>
<!-- Static navbar -->
<!-- Static navbar -->
<nav class="navbar navbar-default">
<div class="container-fluid">
<div class="navbar-header">
<button type="button" class="navbar-toggle collapsed" data-toggle="collapse" data-target="#navbar" aria-expanded="false" aria-controls="navbar">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="#">ECEMEXICO</a>
</div>
<div id="navbar" class="navbar-collapse collapse">
<ul class="nav navbar-nav">
<li class="active"><a href="menu">Home</a></li>
<li><a href="#">Contacto</a></li>
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true" aria-expanded="false">Expediente<span class="caret"></span></a>
<ul class="dropdown-menu">
<li><a href="registrarPaciente">Crear expediente</a></li>
<li><a href="buscarExpediente">Buscar Expediente</a></li>
<li><a href="#"></a></li>
<li role="separator" class="divider"></li>
<li class="dropdown-header">Especialidades</li>
<li><a href="#"></a></li>
<li><a href="#"></a></li>
</ul>
</li>
<li><a href="<c:url value="/logout" />">Salir</a></li>
</ul>
</div><!--/.nav-collapse -->
</div><!--/.container-fluid -->
</nav>
<div class="well lead">Actualizar Usuario (*)Campos obligatorios</div>
<form:form method="POST" modelAttribute="usuarioObj" class="form-horizontal" action="actualizarUsuario">
<form:errors path = "*" cssClass = "errorblock" element = "div" />
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="cedula">Cédula</label>
<div class="col-md-7">
<form:input type="text" path="cedula" value="${usuario.cedula}" id="cedula" class="form-control input-sm"/>
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="curp">CURP</label>
<div class="col-md-7">
<form:input type="text" path="curp" value="${usuario.curp}" id="curp" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="nombre">Nombre</label>
<div class="col-md-7">
<form:input type="text" path="nombre" value="${usuario.nombre}" id="nombre" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="apellidoPaterno">Apellido Paterno</label>
<div class="col-md-7">
<form:input type="text" path="apellidoPaterno" value="${usuario.apellidoPaterno}" id="apellidoPaterno" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="apellidoMaterno">Apellido Materno</label>
<div class="col-md-7">
<form:input type="text" path="apellidoMaterno" value="${usuario.apellidoMaterno}" id="apellidoMaterno" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="especialidad">Especialidad</label>
<div class="col-md-7">
<form:input type="text" path="especialidad" value="${usuario.especialidad}" id="especialidad" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="subEspecialidad">Subespecialidad</label>
<div class="col-md-7">
<form:input type="text" path="subEspecialidad" value="${usuario.subEspecialidad}" id="subEspecialidad
" class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="clues">CLUES</label>
<div class="col-md-7">
<form:input type="text" path="clues" value="${usuario.clues}" id="clues"
class="form-control input-sm" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="email">Email</label>
<div class="col-md-7">
<form:input type="text" path="email" value="${usuario.email}" id="email"
class="form-control input-sm" readonly="true" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="password">Password</label>
<div class="col-md-7">
<form:password path="password" value="${usuario.password}" />
</div>
</div>
</div>
<div class="row">
<div class="form-group col-md-7">
<label class="col-md-3 control-lable" for="rol">Rol</label>
<div class="col-md-7">
<form:select path="rol"
data-toggle="tooltip" data-placement="right" title="Seleccione tipo del rol">
<form:option value="${usuario.rol}"></form:option>
<form:option value="USER"></form:option>
<form:option value="ADMIN"></form:option>
</form:select>
</div>
</div>
</div>
<div class="row">
<div class="col-md-7">
<div> <input type="submit" value="Crear usuario" class="btn btn-primary btn-sm"/>
</div>
</div>
</div>
</form:form>
</div>
<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.4/jquery.min.js"></script>
<script>window.jQuery || document.write('<script src="js/jquery.min.js"><\/script>')</script>
<script src="js/bootstrap.min.js"></script>
<!-- IE10 viewport hack for Surface/desktop Windows 8 bug -->
<script src="js/ie10-viewport-bug-workaround.js"></script>
<script type="text/javascript">
$(function () {
$('[data-toggle="tooltip"]').tooltip()
})
</script>
</body>
</html>
Con esto terminamos todo el prototipo es como una especie de simulación de expediente cllínico electronico si estas leyendo esto o siguiendo el ejercicio asi mas o menos se monta una infraestructura.
Con esto terminariamos las vistas
Seleccionamos crear usuario
Llenamos los campos el pasword lo ponems como juan y el rol User
